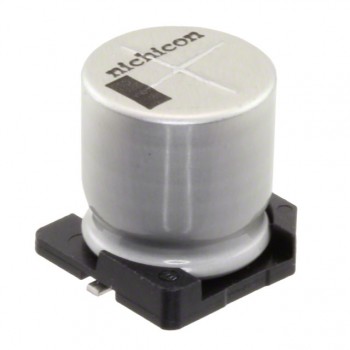

UCZ1J181MNQ1MS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 180UF 20% 63V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UCZ1J181MNQ1MS Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$1.72
- 200$0.92717
- 400$0.82413
- 600$0.70051
- 1,000$0.6181
- 2,000$0.57689
- 5,000$0.56041
Quote It
Technical Details
- Series:UCZ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:180 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):200mOhm @ 100kHz
- Lifetime @ Temp.:3000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 125°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:500 mA @ 120 Hz
- Ripple Current @ High Frequency:1 A @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):0.571" (14.50mm)
- Surface Mount Land Size:0.535" L x 0.535" W (13.60mm x 13.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
