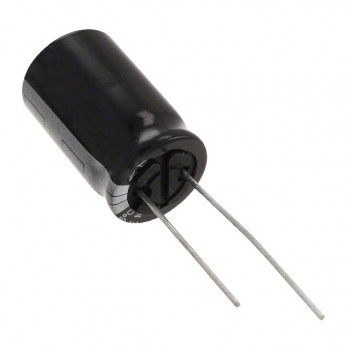

UHW1J561MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- Description63V 561UF 20% HIGH RELIA-LEADED
- CategoryAluminum Electrolytic Capacitors
- Datasheet UHW1J561MHD Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$1.6
- 10$1.25918
- 100$0.94411
- 500$0.71336
- 1,000$0.62942
- 2,500$0.58746
- 5,000$0.56649
Quote It
Technical Details
- Series:UHW
- Package:Bulk
- Part Status:Active
- Capacitance:560 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.23 A @ 120 Hz
- Ripple Current @ High Frequency:2.46 A @ 100 kHz
- Impedance:49 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):1.043" (26.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
