UPS2W220MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

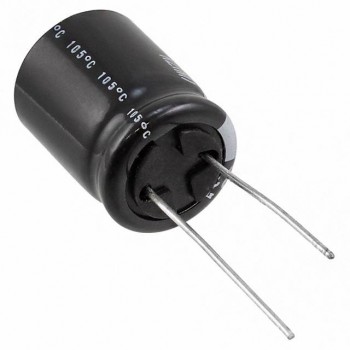

- DescriptionCAP ALUM 22UF 20% 450V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPS2W220MHD Datasheet
-
ECAD Model
- Share
In Stock: 211
Can ship immediately
Pricing:
- 1$1.65
- 10$1.30604
- 100$0.97985
- 500$0.74032
- 1,000$0.65321
- 2,500$0.60966
- 5,000$0.59225
Quote It
Technical Details
- Series:UPS
- Package:Bulk
- Part Status:Active
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:115 mA @ 120 Hz
- Ripple Current @ High Frequency:184 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.319" (33.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
