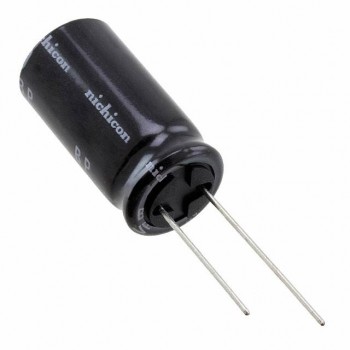

UBY1E432MHL1TN
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4300UF 20% 25V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UBY1E432MHL1TN Datasheet
-
ECAD Model
- Share
In Stock: 161
Can ship immediately
Pricing:
- 1$3.52
- 250$1.69286
- 500$1.50476
- 750$1.41072
- 1,250$1.31667
- 2,500$1.26964
- 6,250$1.22262
Quote It
Technical Details
- Series:UBY
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:4300 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):30mOhm @ 100kHz
- Lifetime @ Temp.:3000 Hrs @ 135°C
- Operating Temperature:-40°C ~ 135°C
- Polarization:Polar
- Ratings:-
- Applications:Automotive
- Ripple Current @ Low Frequency:2.4375 A @ 120 Hz
- Ripple Current @ High Frequency:3.25 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):0.846" (21.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
