25USC22000MEFCSN25X45
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22000UF 20% 25V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 25USC22000MEFCSN25X45 Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
- 1$3.85
- 10$3.10798
- 100$2.42423
- 500$1.80263
- 1,000$1.67831
- 2,500$1.61615
- 5,000$1.58507
Quote It
Technical Details
- Series:USC
- Package:Bulk
- Part Status:Active
- Capacitance:22000 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:5.19 A @ 120 Hz
- Ripple Current @ High Frequency:5.9685 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):1.850" (47.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
Related Products

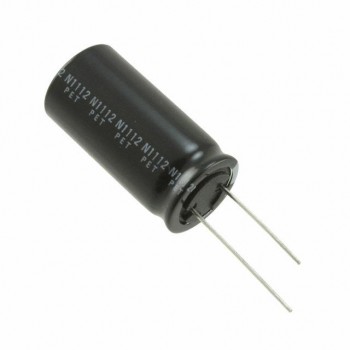

CAP ALUM 3300UF 20% 50V RADIAL
