B41560A5100M000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100000UF 20% 25V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet B41560A5100M000 Datasheet
-
ECAD Model
- Share
In Stock: 152
Can ship immediately
Pricing:
- 1$30.22
- 10$28.634
- 100$23.0659
Quote It
Technical Details
- Series:B41560
- Package:Bulk
- Part Status:Active
- Capacitance:100000 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):9.4mOhm @ 100Hz
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:15 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:7.6 mOhms
- Lead Spacing:0.874" (22.20mm)
- Size / Dimension:2.032" Dia (51.60mm)
- Height - Seated (Max):4.201" (106.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
Related Products

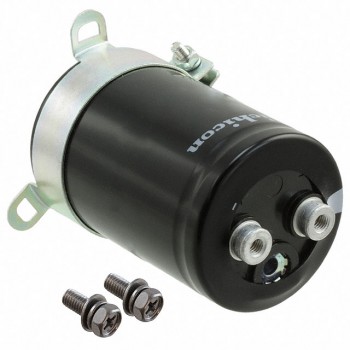

CAP ALUM 2700UF 20% 450V RADIAL
- 1: $31.93000
- 10: $30.25108
- 100: $24.36875

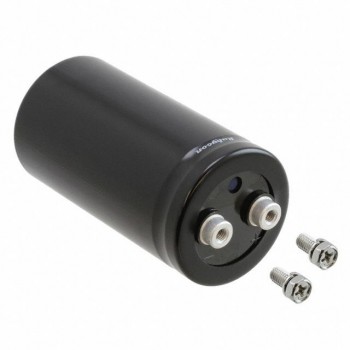

CAP ALUM 10000UF 20% 100V SCREW
