EEU-HD1H681SB
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 680UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEU-HD1H681SB Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$2.12
- 250$1.01923
- 500$0.90598
- 750$0.84937
- 1,250$0.79273
- 2,500$0.77008
Quote It
Technical Details
- Series:HD
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:680 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:650 mA @ 120 Hz
- Ripple Current @ High Frequency:975 mA @ 100 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):0.650" (16.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

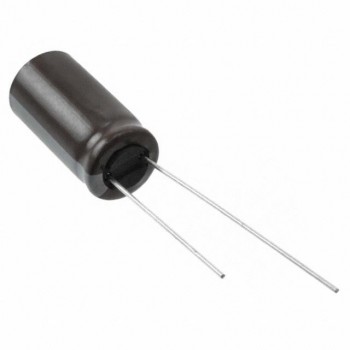

CAP ALUM 3300UF 20% 25V RADIAL
