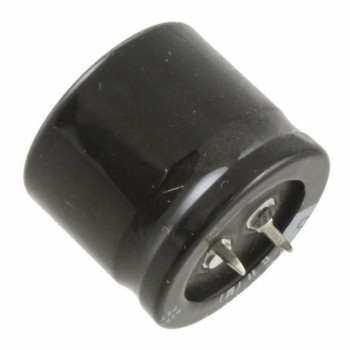

LGU1E153MELA
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 15000UF 20% 25V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LGU1E153MELA Datasheet
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$3.8
- 10$3.41609
- 100$2.58097
- 500$2.12554
- 1,000$2.06481
Quote It
Technical Details
- Series:LGU
- Package:Bulk
- Part Status:Active
- Capacitance:15000 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.27 A @ 120 Hz
- Ripple Current @ High Frequency:3.7605 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):1.850" (47.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
