ALS71A242KE350
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant

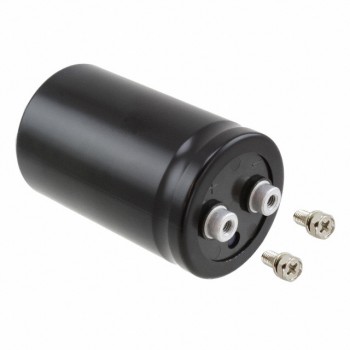

- DescriptionCAP ALUM 2400UF 20% 350V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet ALS71A242KE350 Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$23.17
- 10$21.954
- 100$17.6854
- 500$15.85584
Quote It
Technical Details
- Series:ALS71
- Package:Bulk
- Part Status:Active
- Capacitance:2400 µF
- Tolerance:±20%
- Voltage - Rated:350 V
- ESR (Equivalent Series Resistance):80mOhm @ 100Hz
- Lifetime @ Temp.:18000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:8.1 A @ 100 Hz
- Ripple Current @ High Frequency:13.6 A @ 10 kHz
- Impedance:49 mOhms
- Lead Spacing:0.874" (22.20mm)
- Size / Dimension:2.008" Dia (51.00mm)
- Height - Seated (Max):3.307" (84.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
