ALS71A184MF040
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 180000UF 20% 40V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet ALS71A184MF040 Datasheet
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
- 1$39.51
- 10$37.315
- 100$30.1816
Quote It
Technical Details
- Series:ALS71
- Package:Bulk
- Part Status:Active
- Capacitance:180000 µF
- Tolerance:±20%
- Voltage - Rated:40 V
- ESR (Equivalent Series Resistance):9mOhm @ 100Hz
- Lifetime @ Temp.:19000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:27.4 A @ 100 Hz
- Ripple Current @ High Frequency:29.2 A @ 10 kHz
- Impedance:9 mOhms
- Lead Spacing:1.122" (28.50mm)
- Size / Dimension:2.598" Dia (66.00mm)
- Height - Seated (Max):4.213" (107.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
Related Products

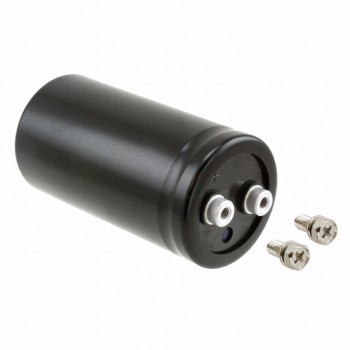

CAP ALUM 1200UF 20% 500V SCREW
