LQR2W272MSEF
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2700UF 20% 450V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet LQR2W272MSEF Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
- 1$70.17
- 10$65.78634
- 100$57.01452
Quote It
Technical Details
- Series:LQR
- Package:Bulk
- Part Status:Active
- Capacitance:2700 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:10.2 A @ 120 Hz
- Ripple Current @ High Frequency:14.28 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.866" (22.00mm)
- Size / Dimension:2.008" Dia (51.00mm)
- Height - Seated (Max):6.024" (153.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
Related Products
CAP ALUM 6800UF 20% 400V SCREW
400LSQ6800MNB77X151 Datasheet- 1: $70.40000
- 10: $66.00315
- 100: $57.20273

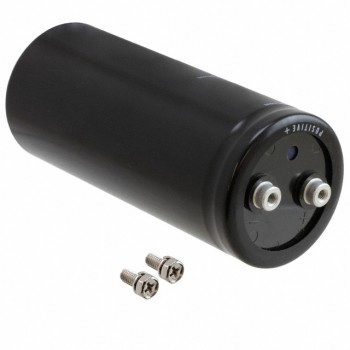

CAP ALUM 3300UF 20% 450V SCREW
450LSG3300MNB64X149 Datasheet- 1: $78.11000
- 10: $73.22537
- 100: $63.46199
