LNU2H332MSEH
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 3300UF 20% 500V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet LNU2H332MSEH Datasheet
-
ECAD Model
- Share
In Stock: 190
Can ship immediately
Pricing:
- 1$97.12
- 10$92.09496
- 100$91.09058
Quote It
Technical Details
- Series:LNU
- Package:Bulk
- Part Status:Active
- Capacitance:3300 µF
- Tolerance:±20%
- Voltage - Rated:500 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:10.9 A @ 120 Hz
- Ripple Current @ High Frequency:15.26 A @ 10 kHz
- Impedance:-
- Lead Spacing:1.252" (31.80mm)
- Size / Dimension:3.000" Dia (76.20mm)
- Height - Seated (Max):5.236" (133.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
Related Products
CAP ALUM 6800UF 20% 450V SCREW
450LSU6800MNB77X191 Datasheet- 1: $98.30000
- 10: $92.15441
- 100: $79.86670

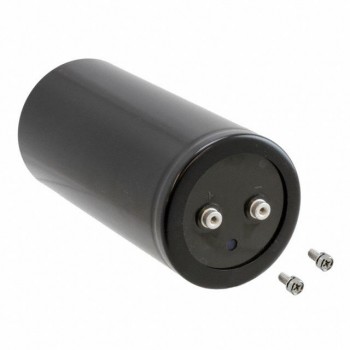

CAP ALUM 12000UF 20% 400V SCREW
