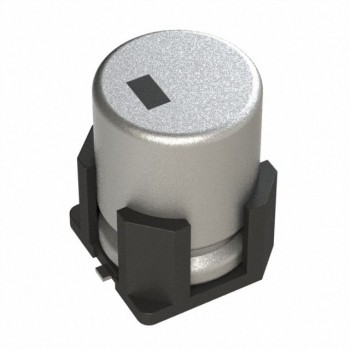

EEE-FN1C561UP
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 560UF 16VDC 20% SMD
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$0.84
Quote It
Technical Details
- Series:FN
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:560 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):160mOhm @ 100kHz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:420 mA @ 120 Hz
- Ripple Current @ High Frequency:600 mA @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.413" (10.50mm)
- Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products
CAP ALUM 47UF 80VDC 20% SMD
- 1: $0.84000

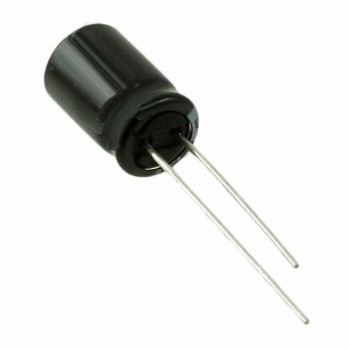

CAP ALUM 1UF 20% 350V RADIAL
