EEE-FK2A101AV
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 100V SMD
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
- 1$2.88
Quote It
Technical Details
- Series:FK, Anti-Vibration
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):170mOhm @ 100kHz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, High Temperature Reflow
- Ripple Current @ Low Frequency:594.75 mA @ 120 Hz
- Ripple Current @ High Frequency:793 mA @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):0.673" (17.10mm)
- Surface Mount Land Size:0.669" L x 0.669" W (17.00mm x 17.00mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products
CAP ALUM 1600UF 20% 25V SMD
- 1: $2.98000

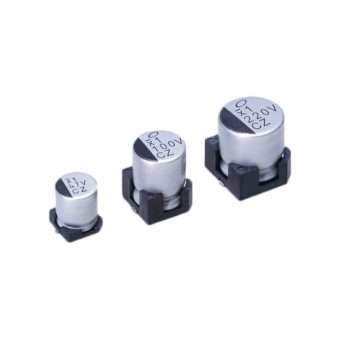

CAP ALUM 680UF 20% 50V SMD
