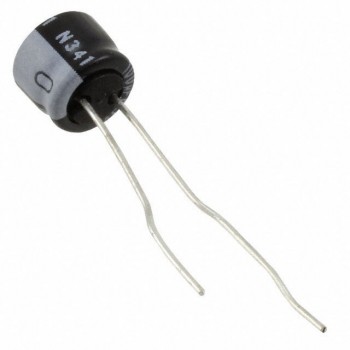

UFG1A470MDM1TA
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 47UF 20% 10V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UFG1A470MDM1TA Datasheet
-
ECAD Model
- Share
In Stock: 101
Can ship immediately
Pricing:
- 1$0.07383
- 4,000$0.07383
Quote It
Technical Details
- Series:UFG
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:47 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:Audio
- Ripple Current @ Low Frequency:60 mA @ 120 Hz
- Ripple Current @ High Frequency:120 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.492" (12.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
