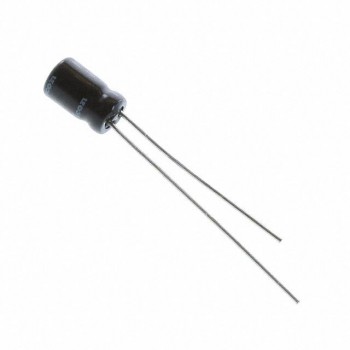

25ZLG33MEFCTZ6.3X7
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 33UF 20% 25V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet 25ZLG33MEFCTZ6.3X7 Datasheet
-
ECAD Model
- Share
In Stock: 109
Can ship immediately
Pricing:
- 1$0.08042
- 5,000$0.07677
Quote It
Technical Details
- Series:ZLG
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:33 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:86.4 mA @ 120 Hz
- Ripple Current @ High Frequency:480 mA @ 100 kHz
- Impedance:160 mOhms
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.315" (8.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
