USW1H220MDD1TE
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet USW1H220MDD1TE Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$0.08289
- 4,000$0.08289
Quote It
Technical Details
- Series:USW
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:Audio
- Ripple Current @ Low Frequency:58 mA @ 120 Hz
- Ripple Current @ High Frequency:87 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.315" (8.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

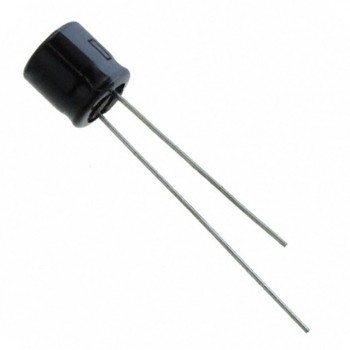

CAP 56 UF 20% 16 V
