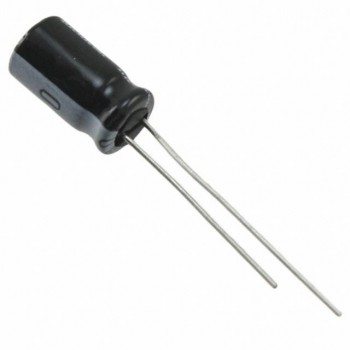

UPJ0J271MED1TA
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 270UF 20% 6.3V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPJ0J271MED1TA Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
- 1$0.08426
- 4,000$0.08426
Quote It
Technical Details
- Series:UPJ
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:270 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:275 mA @ 120 Hz
- Ripple Current @ High Frequency:370 mA @ 10 kHz
- Impedance:390 mOhms
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.630" (16.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
