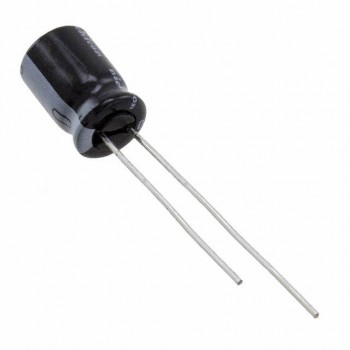

UVZ1H101MPD1TA
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UVZ1H101MPD1TA Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$0.08611
- 3,000$0.08611
Quote It
Technical Details
- Series:UVZ
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:190 mA @ 120 Hz
- Ripple Current @ High Frequency:285 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.138" (3.50mm)
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.512" (13.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
