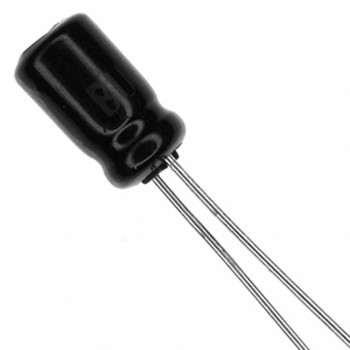

UMR0J220MCD2
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 6.3V THRU HOLE
- CategoryAluminum Electrolytic Capacitors
- Datasheet UMR0J220MCD2 Datasheet
-
ECAD Model
- Share
In Stock: 191
Can ship immediately
Pricing:
- 1$0.09543
- 2,000$0.09543
Quote It
Technical Details
- Series:UMR
- Package:Bulk
- Part Status:Active
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:21 mA @ 120 Hz
- Ripple Current @ High Frequency:31.5 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.059" (1.50mm)
- Size / Dimension:0.157" Dia (4.00mm)
- Height - Seated (Max):0.236" (6.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
