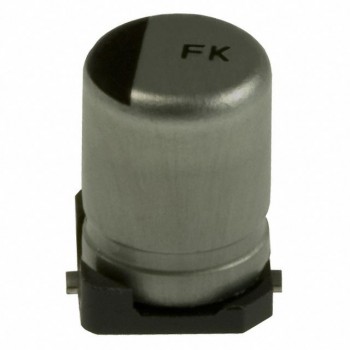

EEE-HB1H6R8AR
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 6.8UF 20% 50V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-HB1H6R8AR Datasheet
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
- 1$0.09957
- 3,000$0.09504
Quote It
Technical Details
- Series:HB
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:6.8 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:23 mA @ 120 Hz
- Ripple Current @ High Frequency:39.1 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.228" (5.80mm)
- Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
