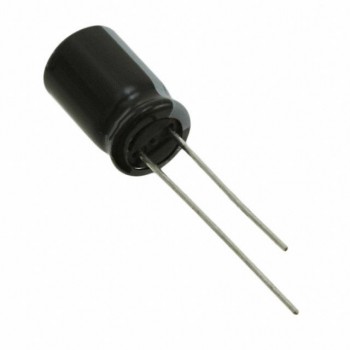

10YXF330MEFCTA8X11.5
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 10V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet 10YXF330MEFCTA8X11.5 Datasheet
-
ECAD Model
- Share
In Stock: 121
Can ship immediately
Pricing:
- 1$0.10599
- 2,000$0.10117
Quote It
Technical Details
- Series:YXF
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:6000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:280 mA @ 120 Hz
- Ripple Current @ High Frequency:400 mA @ 100 kHz
- Impedance:250 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.512" (13.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
