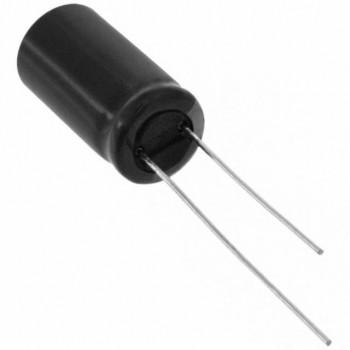

ELXY630ELL330MF15D
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 33UF 20% 63V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet ELXY630ELL330MF15D Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$0.14283
- 2,000$0.14283
Quote It
Technical Details
- Series:LXY
- Package:Bulk
- Part Status:Active
- Capacitance:33 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:93.2 mA @ 120 Hz
- Ripple Current @ High Frequency:233 mA @ 100 kHz
- Impedance:610 mOhms
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.650" (16.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
