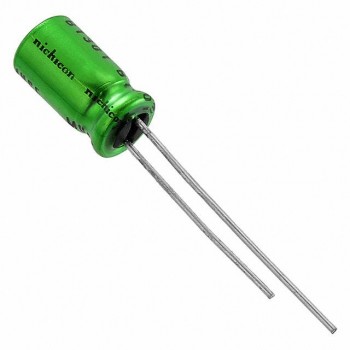

UEP1H3R3MDD1TA
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 3.3UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UEP1H3R3MDD1TA Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$0.14739
- 2,000$0.13399
Quote It
Technical Details
- Series:UEP
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:3.3 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Bi-Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:22 mA @ 120 Hz
- Ripple Current @ High Frequency:44 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.492" (12.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
