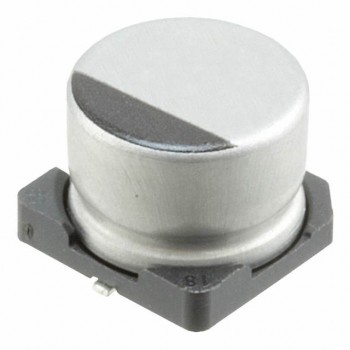

AHA336M25C12T-F
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 33UF 20% 25V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AHA336M25C12T-F Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
- 1$0.16192
- 2,000$0.14578
Quote It
Technical Details
- Series:AHA
- Package:Tape & Reel (TR)
- Part Status:Active
- Capacitance:33 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):10Ohm @ 120Hz
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, Bypass, Decoupling
- Ripple Current @ Low Frequency:42 mA @ 120 Hz
- Ripple Current @ High Frequency:71.4 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.213" (5.40mm)
- Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
