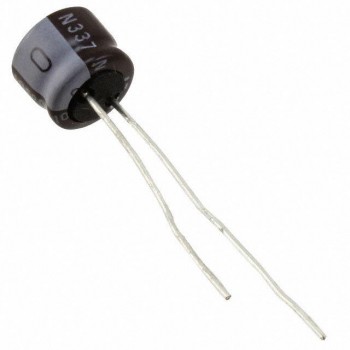

UPV1C101MGD1TA
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPV1C101MGD1TA Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$0.16505
- 2,000$0.15005
Quote It
Technical Details
- Series:UPV
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:265 mA @ 100 kHz
- Impedance:600 mOhms
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.492" (12.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
