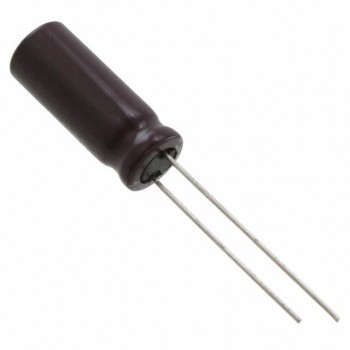

UEP1E330MED1TA
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 33UF 20% 25V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UEP1E330MED1TA Datasheet
-
ECAD Model
- Share
In Stock: 162
Can ship immediately
Pricing:
- 1$0.16671
- 2,000$0.15155
Quote It
Technical Details
- Series:UEP
- Package:Tape & Reel (TR)
- Part Status:Active
- Capacitance:33 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Bi-Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:56 mA @ 120 Hz
- Ripple Current @ High Frequency:112 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.492" (12.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
