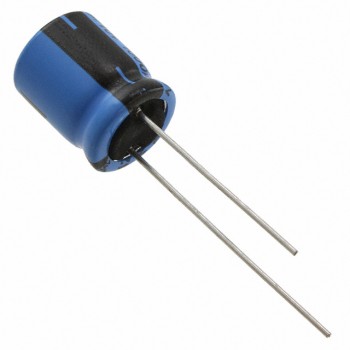

UHE1J121MPD1TA

Technical Details

• Series:UHE
• Package:Tape & Reel (TR)
• Part Status:Active
• Capacitance:120 µF
• Tolerance:±20%
• Voltage - Rated:63 V
• ESR (Equivalent Series Resistance):-
• Lifetime @ Temp.:7000 Hrs @ 105°C
• Operating Temperature:-40°C ~ 105°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:285.6 mA @ 120 Hz
• Ripple Current @ High Frequency:408 mA @ 100 kHz
• Impedance:330 mOhms
• Lead Spacing:0.138" (3.50mm)
• Size / Dimension:0.315" Dia (8.00mm)
• Height - Seated (Max):0.866" (22.00mm)
• Surface Mount Land Size:-
• Mounting Type:Through Hole
• Package / Case:Radial, Can
