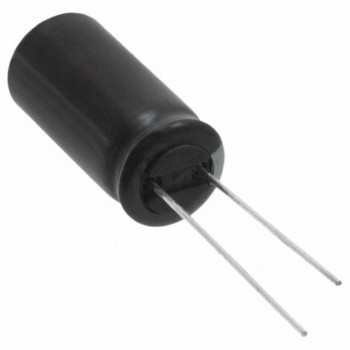

EEU-EB1C102B
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEU-EB1C102B Datasheet
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
- 1$0.24546
- 1,000$0.2343
Quote It
Technical Details
- Series:EB
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:430 mA @ 120 Hz
- Ripple Current @ High Frequency:494.5 mA @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
