EMLA250ADA101MHA0G
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 25V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EMLA250ADA101MHA0G Datasheet
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$0.50244
- 500$0.35227
Quote It
Technical Details
- Series:Alchip™- MLA
- Package:Tape & Reel (TR)
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:240 mA @ 120 Hz
- Ripple Current @ High Frequency:600 mA @ 100 kHz
- Impedance:160 mOhms
- Lead Spacing:-
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.406" (10.30mm)
- Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

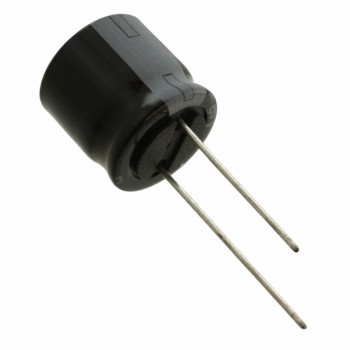

CAP ALUM 1000UF 20% 16V RADIAL
