URY2D220MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 200V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet URY2D220MHD Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
- 1$0.50342
- 400$0.50342
Quote It
Technical Details
- Series:URY
- Package:Bulk
- Part Status:Active
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:110 mA @ 120 Hz
- Ripple Current @ High Frequency:176 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):0.551" (14.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products
CAP ALUM 15UF 20% 400V RADIAL
- 1: $0.50394

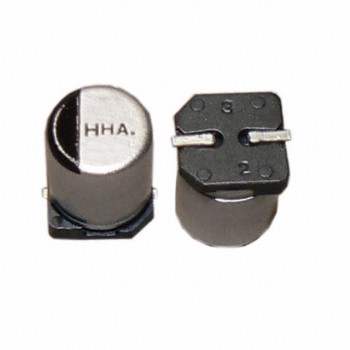

CAP ELECT 470UF 10V FK SMD
