25ZLG1500MEFCG412.5X25
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant

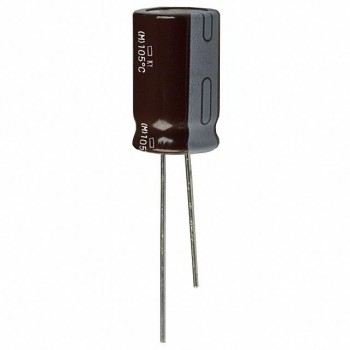

- DescriptionCAP ALUM 1500UF 20% 25V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet 25ZLG1500MEFCG412.5X25 Datasheet
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$0.51802
- 1,000$0.49447
Quote It
Technical Details
- Series:ZLG
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:1500 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.74 A @ 120 Hz
- Ripple Current @ High Frequency:2.9 A @ 100 kHz
- Impedance:12 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
