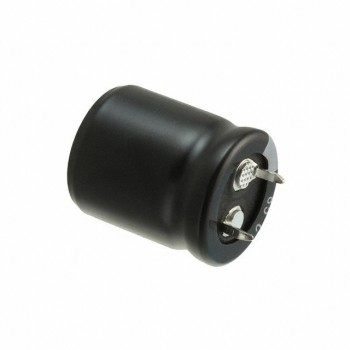

UBT1A332MHD8
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 3300UF 20% 10V THRUHOLE
- CategoryAluminum Electrolytic Capacitors
- Datasheet UBT1A332MHD8 Datasheet
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
- 1$1.27175
- 200$1.27175
Quote It
Technical Details
- Series:UBT
- Package:Bulk
- Part Status:Active
- Capacitance:3300 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 125°C
- Polarization:Polar
- Ratings:-
- Applications:Automotive
- Ripple Current @ Low Frequency:1.541 A @ 120 Hz
- Ripple Current @ High Frequency:2.3 A @ 100 kHz
- Impedance:24 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
