ELXZ100ELL562MM20S
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant

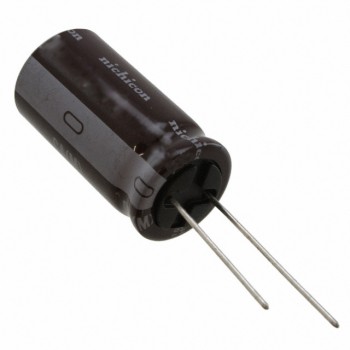

- DescriptionCAP ALUM 5600UF 20% 10V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet ELXZ100ELL562MM20S Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
- 1$1.29888
- 500$0.85858
Quote It
Technical Details
- Series:LXZ
- Package:Bulk
- Part Status:Active
- Capacitance:5600 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:8000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:2.1165 A @ 120 Hz
- Ripple Current @ High Frequency:2.49 A @ 100 kHz
- Impedance:28 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):0.787" (20.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
