MALREKA05JS510D00K
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant

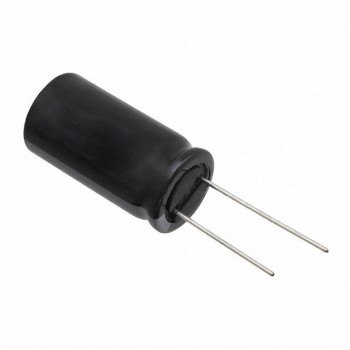

- DescriptionCAP ALUM 10000UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet MALREKA05JS510D00K Datasheet
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$1.42968
- 1,200$1.29971
Quote It
Technical Details
- Series:EKA
- Package:Bulk
- Part Status:Active
- Capacitance:10000 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):50mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.176 A @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.319" (33.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
