UUG1V222MNQ1ZD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

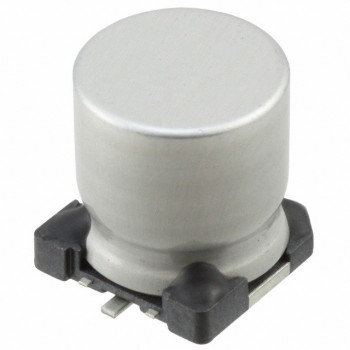

- DescriptionCAP ALUM 2200UF 20% 35V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UUG1V222MNQ1ZD Datasheet
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
- 1$1.4555
- 160$1.4555
Quote It
Technical Details
- Series:UUG
- Package:Tray
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.55 A @ 120 Hz
- Ripple Current @ High Frequency:1.7825 A @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):0.886" (22.50mm)
- Surface Mount Land Size:0.752" L x 0.752" W (19.10mm x 19.10mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
