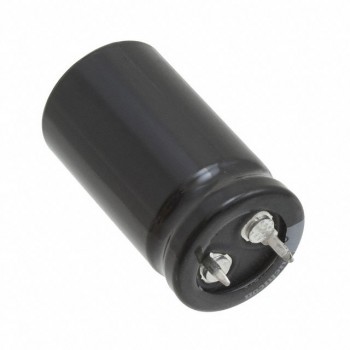

ELXG800VSN472MA50S
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4700UF 20% 80V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet ELXG800VSN472MA50S Datasheet
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
- 1$2.9292
- 200$2.9292
Quote It
Technical Details
- Series:LXG
- Package:Bulk
- Part Status:Active
- Capacitance:4700 µF
- Tolerance:±20%
- Voltage - Rated:80 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.46 A @ 120 Hz
- Ripple Current @ High Frequency:4.152 A @ 100 kHz
- Impedance:23 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):2.047" (52.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
