860040781020
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant

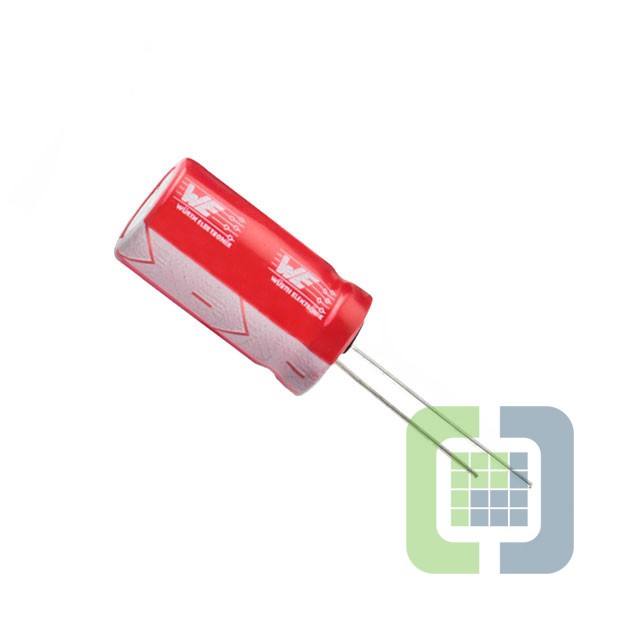

- DescriptionCAP 1200 UF 20% 63 V
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
- 1$3.94
- 200$3.94
- 400$3.52505
- 600$3.11107
- 1,000$2.97275
Quote It
Technical Details
- Series:WCAP-ATUL
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:1200 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.46 A @ 120 Hz
- Ripple Current @ High Frequency:3 A @ 100 kHz
- Impedance:39 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.476" (37.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
