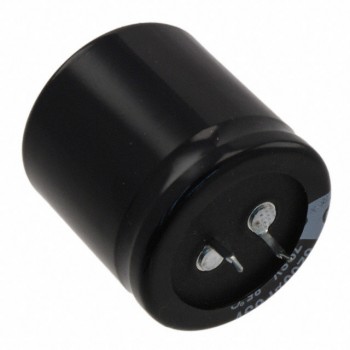

B43508B5187M7
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 180UF 20% 450V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43508B5187M7 Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$4.17533
- 520$4.17533
Quote It
Technical Details
- Series:B43508
- Package:Bulk
- Part Status:Active
- Capacitance:180 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):680mOhm @ 100Hz
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:970 mA @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:960 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):1.457" (37.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
