EEU-FC1E121B
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant

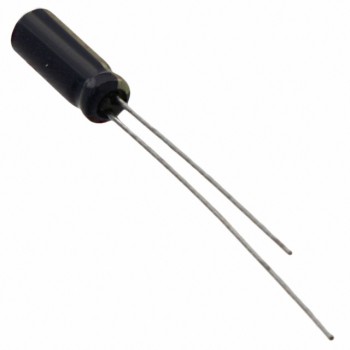

- DescriptionCAP ALUM 120UF 20% 25V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEU-FC1E121B Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:FC
- Package:Tape & Box (TB)
- Part Status:Obsolete
- Capacitance:120 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:260 mA @ 120 Hz
- Ripple Current @ High Frequency:400 mA @ 100 kHz
- Impedance:250 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.728" (18.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
