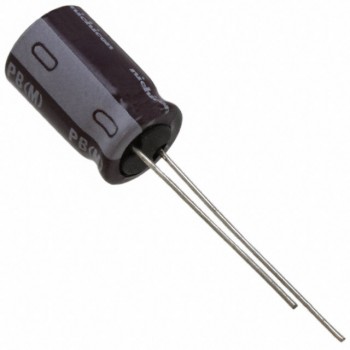

UPB1E101MED1TD

Technical Details

• Series:UPB
• Package:Cut Tape (CT)Tape & Box (TB)
• Part Status:Obsolete
• Capacitance:100 µF
• Tolerance:±20%
• Voltage - Rated:25 V
• ESR (Equivalent Series Resistance):-
• Lifetime @ Temp.:5000 Hrs @ 105°C
• Operating Temperature:-40°C ~ 105°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:95 mA @ 120 Hz
• Ripple Current @ High Frequency:123.5 mA @ 100 kHz
• Impedance:-
• Lead Spacing:0.098" (2.50mm)
• Size / Dimension:0.248" Dia (6.30mm)
• Height - Seated (Max):0.492" (12.50mm)
• Surface Mount Land Size:-
• Mounting Type:Through Hole
• Package / Case:Radial, Can
