2114-2X10G00S-3-3-17.5B
Oupiin
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionPIN HEADER, DOUBLE ROW, 20 PIN,
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
-
ECAD Model
- Share
In Stock: 289
Can ship immediately
Pricing:
- 1$0.77
Quote It
Technical Details
- Series:2114
- Package:Bulk
- Part Status:Active
- Number of Positions:20
- Pitch:0.079" (2.00mm)
- Number of Rows:2
- Row Spacing:0.079" (2.00mm)
- Length - Overall Pin:0.689" (17.500mm)
- Length - Post (Mating):0.118" (3.000mm)
- Length - Stack Height:0.453" (11.500mm)
- Length - Tail:0.118" (3.000mm)
- Mounting Type:Through Hole
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):Flash
- Color:Black
Related Products
SHROUDED TERMINAL STRIP HEADER
- 1: $0.80000
PIN HEADER, DOUBLE ROW, 14 PIN,
- 1: $1.08000
SHROUDED TERMINAL STRIP HEADER
- 1: $1.25000
PIN HEADER, DOUBLE ROW, 20 PIN,
- 1: $1.53000
PIN HEADER, DOUBLE ROW, 40 PIN,
- 1: $2.10000
PIN HEADER, DOUBLE ROW, 60 PIN,
- 1: $4.74000
PIN HEADER, DOUBLE ROW, 80 PIN,
- 1: $13.89000
CONN HDR 80POS 0.079 STACK T/H

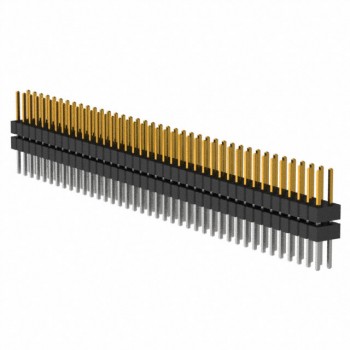

TW-40-03-S-D-180-160 Datasheet- 1: $17.07000
