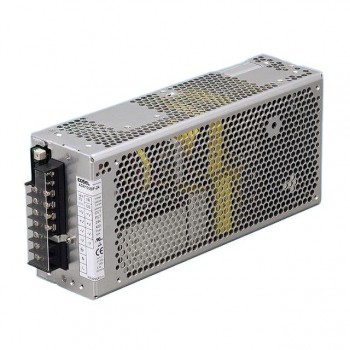

AC6-O2H2K-00-C

Technical Details

• Series:ACE (650W)
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:2
• Voltage - Input:85 ~ 264 VAC
• Voltage - Output 1:24V
• Voltage - Output 2:48V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):6.5A, 7A

• Power (Watts):-
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:3 kV
• Efficiency:80%
• Operating Temperature:-20°C ~ 70°C
• Features:-
• Mounting Type:Chassis Mount
• Size / Dimension:10.98" L x 5.00" W x 2.50" H (278.9mm x 127.0mm x 63.5mm)
• Approval Agency:CE, CSA, cURus, TUV, UL
• Standard Number:60601-1; 60950-1; 62368-1
