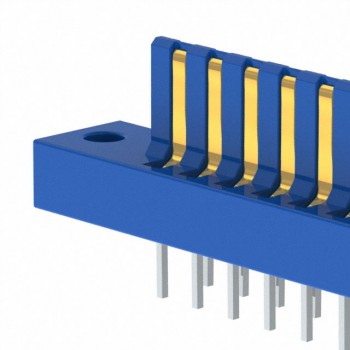

GBM10DSXS
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN EDGE DUAL FMALE 20POS 0.156
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet GBM10DSXS Datasheet
-
ECAD Model
- Share
In Stock: 124
Can ship immediately
Pricing:
- 1$3.552
- 10$3.552
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Card Type:Non Specified - Dual Edge
- Gender:Female
- Number of Positions/Bay/Row:10
- Number of Positions:20
- Card Thickness:0.062" (1.57mm)
- Number of Rows:2
- Pitch:0.156" (3.96mm)
- Read Out:Single
- Features:-
- Mounting Type:Through Hole
- Termination:Solder
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Contact Type:Full Bellows
- Color:Black
- Flange Feature:Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
- Operating Temperature:-65°C ~ 125°C
