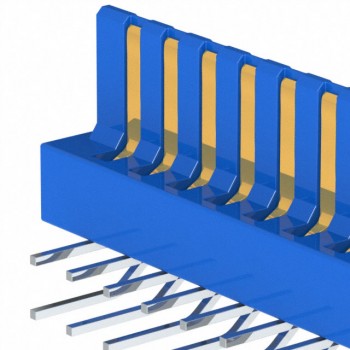

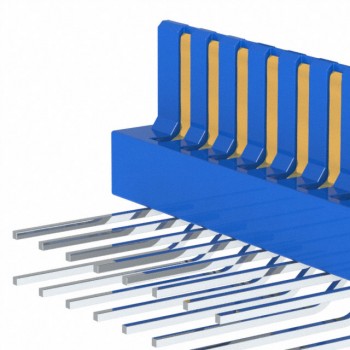

EBC10MMJD
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN CARDEDGE MALE 20POS 0.100
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet EBC10MMJD Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
- 1$4.07
- 10$4.07
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Card Type:Fits Female Edgecards
- Gender:Male
- Number of Positions/Bay/Row:10
- Number of Positions:20
- Card Thickness:0.062" (1.57mm)
- Number of Rows:2
- Pitch:0.100" (2.54mm)
- Read Out:Dual
- Features:-
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Contact Type:-
- Color:Blue
- Flange Feature:Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
- Operating Temperature:-65°C ~ 125°C
