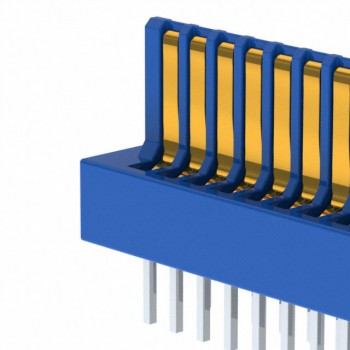

ECC13DCWH-S288
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN EDGE DUAL FMALE 26POS 0.100
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet ECC13DCWH-S288 Datasheet
-
ECAD Model
- Share
In Stock: 148
Can ship immediately
Pricing:
- 1$4.262
- 10$4.262
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Card Type:Non Specified - Dual Edge
- Gender:Female
- Number of Positions/Bay/Row:13
- Number of Positions:26
- Card Thickness:0.062" (1.57mm)
- Number of Rows:2
- Pitch:0.100" (2.54mm)
- Read Out:Dual
- Features:Card Extender
- Mounting Type:Board Edge, Straddle Mount
- Termination:Solder
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Contact Type:Hairpin Bellows
- Color:Blue
- Flange Feature:Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
- Operating Temperature:-65°C ~ 125°C
