In Stock: 161

Can ship immediately

Pricing:
  • 1$4.618
  • 10$4.618

Quote It

Technical Details

  • Series:-
  • Package:Tray
  • Part Status:Active
  • Card Type:Non Specified - Dual Edge
  • Gender:Female
  • Number of Positions/Bay/Row:8
  • Number of Positions:16
  • Card Thickness:0.062" (1.57mm)
  • Number of Rows:2
  • Pitch:0.156" (3.96mm)
  • Read Out:Dual



  • Features:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Contact Material:Phosphor Bronze
  • Contact Finish:Gold
  • Contact Finish Thickness:30.0µin (0.76µm)
  • Contact Type:Full Bellows
  • Color:-
  • Flange Feature:Top Mount Opening, Threaded Insert, 4-40
  • Operating Temperature:-65°C ~ 125°C

Related Products


ECM08DRMS-S288

CONN EDGE DUAL FMALE 16POS 0.156

ECM08DRMS-S288 Datasheet
  • 1: $4.61800
  • 10: $4.61800

ECM10DKES-S189

CONN EDGE DUAL FMALE 20POS 0.156

ECM10DKES-S189 Datasheet
  • 1: $4.61800
  • 10: $ 4.61800

ECM10DKJI

CONN EDGE DUAL FMALE 20POS 0.156

ECM10DKJI Datasheet
  • 1: $4.61800
  • 10: $ 4.61800

ECM10MMMD

CONN CARDEDGE MALE 20POS 0.156

ECM10MMMD Datasheet
  • 1: $4.61800
  • 10: $4.61800

ECM10MMMN

CONN CARDEDGE MALE 20POS 0.156

ECM10MMMN Datasheet
  • 1: $4.61800
  • 10: $ 4.61800

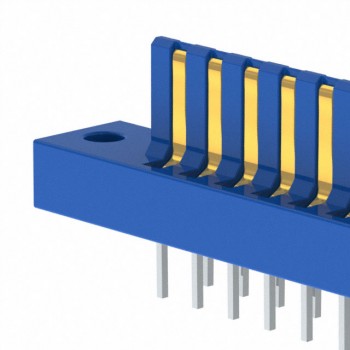

ECM10MMSD

CONN CARDEDGE MALE 20POS 0.156

ECM10MMSD Datasheet
  • 1: $4.61800
  • 10: $ 4.61800

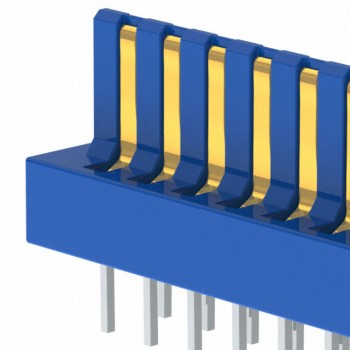

ECM10MMSN

CONN CARDEDGE MALE 20POS 0.156

ECM10MMSN Datasheet
  • 1: $4.61800
  • 10: $ 4.61800

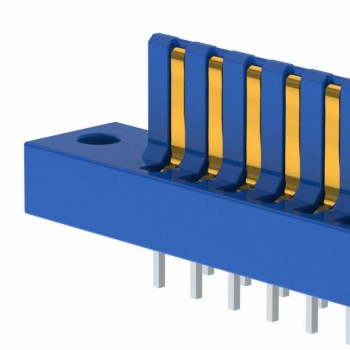

ECM10MMWD

CONN CARDEDGE MALE 20POS 0.156

ECM10MMWD Datasheet
  • 1: $4.61800
  • 10: $4.61800

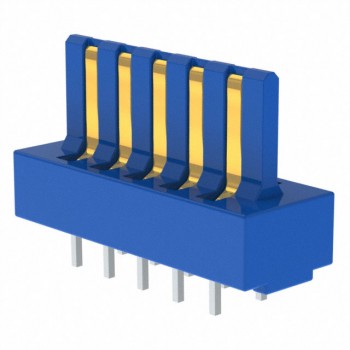

ECM10MMWN
