ECC25DCBH-S189
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN EDGE DUAL FMALE 50POS 0.100
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet ECC25DCBH-S189 Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$6.311
- 10$6.311
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Card Type:Non Specified - Dual Edge
- Gender:Female
- Number of Positions/Bay/Row:25
- Number of Positions:50
- Card Thickness:0.062" (1.57mm)
- Number of Rows:2
- Pitch:0.100" (2.54mm)
- Read Out:Dual
- Features:-
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Contact Type:Hairpin Bellows
- Color:-
- Flange Feature:Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
- Operating Temperature:-65°C ~ 125°C
Related Products

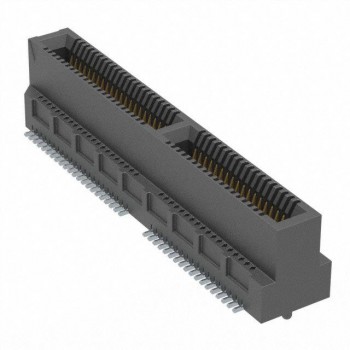

CONN EDGE DUAL FMALE 80POS 0.031
