ECM30DCSD-S288
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN EDGE DUAL FMALE 60POS 0.156
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet ECM30DCSD-S288 Datasheet
-
ECAD Model
- Share
In Stock: 181
Can ship immediately
Pricing:
- 1$8.91
- 10$8.91
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Card Type:Non Specified - Dual Edge
- Gender:Female
- Number of Positions/Bay/Row:30
- Number of Positions:60
- Card Thickness:0.062" (1.57mm)
- Number of Rows:2
- Pitch:0.156" (3.96mm)
- Read Out:Dual
- Features:Card Extender
- Mounting Type:Board Edge, Straddle Mount
- Termination:Solder
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Contact Type:Hairpin Bellows
- Color:Blue
- Flange Feature:Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
- Operating Temperature:-65°C ~ 125°C
Related Products

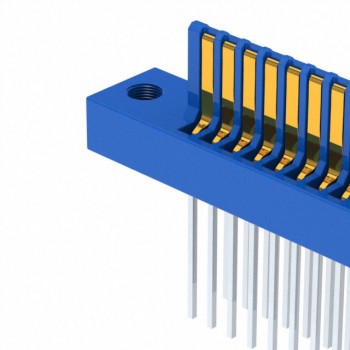

CONN CARDEDGE MALE 30POS 0.100
