0758000001
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN AMC B+ FEMALE 170POS 0.030
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet 0758000001 Datasheet
-
ECAD Model
- Share
In Stock: 193
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:75800
- Package:Tray
- Part Status:Obsolete
- Card Type:Advanced Mezzanine Card B+, MicroTCA
- Gender:Female
- Number of Positions/Bay/Row:85
- Number of Positions:170
- Card Thickness:0.057" ~ 0.069" (1.44mm ~ 1.76mm)
- Number of Rows:2
- Pitch:0.030" (0.76mm)
- Read Out:Dual
- Features:Board Guide
- Mounting Type:Through Hole, Right Angle
- Termination:Press-Fit
- Contact Material:Copper Alloy
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Contact Type:-
- Color:Black
- Flange Feature:-
- Operating Temperature:-40°C ~ 105°C
Related Products

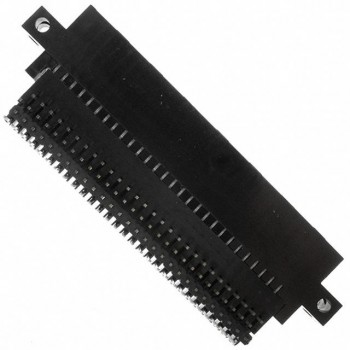

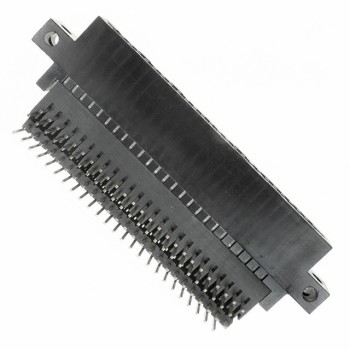

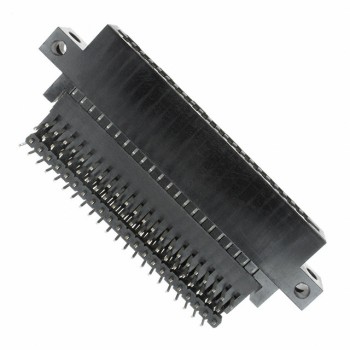

CONN EDGE DUAL FMALE 48POS 0.100
